Need temporary sound walls for your project?
For a free, no-obligation quote, get in touch with our team.

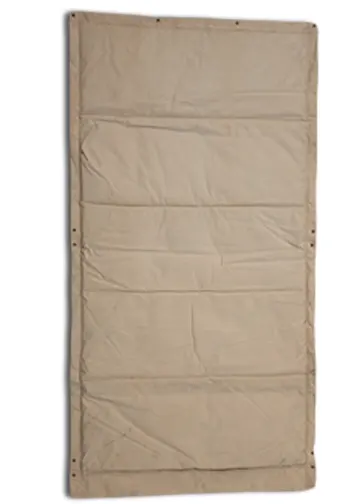

Acoustic Blankets

We supply acoustical blankets for use as temporary sound walls. Our Echo Noise Control acoustical blankets are made in the U.S. and can be purchased or rented from NMS.

Our temporary noise barriers attach easily to any existing construction fence and are designed with construction sound control in mind. The materials we use are high quality, durable, and fire resistant.

Our Clients Include:

Key Features:

Sized to fit Standard Construction Site Fencing

Sound Transmission Class (STC) 26

Noise Reduction Coefficient (NRC) 0.70

UV resistant

FR Rated

Anti-Fungal

Durable Material

Our noise barriers have been tested by an independent acoustical laboratory per ASTM E-90 and ASTM E-413 requirements. Our blankets have a verified Sound Transmission Class (STC) rating of 26 and a verified Noise Reduction Coefficient (NRC) of 0.70

Acoustic Blanket Barrier Options

Size Options:

Our acoustical noise blankets come in two standard sizes. They may also be stacked for additional height. Custom sizes are available on request.

Color Options:





Mounting Options

Our easy-install temporary noise barriers take very little effort to mount on any existing fence or scaffolding making them cost efficient as well as effective. Grommets are sewn into the blankets for quick and easy attachment to any existing structure. Our design keeps costs down and allows for a small team to install the blankets with maximum efficiency.

Our walls as shown on the left are easily installed with a small team and few tools needed. They are efficient and effective. The wall to the left is an example of our 8-foot version mounted on a chain link fence at a construction site.

Technical Specifications:

• Sound Transmission Class (STC) 26
• Noise Reduction Coefficient (NRC) of 0.70
Spec Sheet Download

• Blankets constructed with a reinforced PVC UV-resistant outer layer and encase acoustically absorptive materials.
• The blanket barriers can be hung from any support structure using the grommet inserts.
• Available to order in our standard sizes made to fit standard construction fencing.




Echo Noise Control STC-26 Acoustic Barrier Performance Modeling

Six Foot ENC STC-26 Sound Barrier Wall Performance


Using the environmental noise monitoring software Soundplan, we have modeled our STC-26 barrier in order to simulate the noise reduction effectiveness of our six foot sound wall on a construction site. The noise contour map shows the difference between the unmitigated east and mitigated west noise levels as they propagate across the affected area.

Twelve Foot ENC STC-26 Sound Barrier Wall Performance


Using the environmental noise monitoring software SoundPlan, we have modeled our STC-26 barrier in order to simulate the noise reduction effectiveness of our twelve foot sound wall on a construction site. The twelve foot high wall shows an increase in noise mitigation showing that an increase in wall height can be utilized to further reduce unwanted construction noise when necessary.
Noise Monitoring Services specializes in providing construction projects with temporary, cost efficient and effective sound barriers. Our Echo Noise Control products mitigate and reduce unwanted noise to nearby properties. Our blankets have been laboratory tested and have been designed to be the most effective solution for construction site noise. The barriers can be attached to any existing chain link construction fence quickly and with ease. The mounting system for the blankets was designed to require very little effort and by simply using the grommet inserts.

We offer noise and sound control solutions to a wide variety of industries including commercial and residential construction, oil and gas, entertainment, industrial complexes, and more. Our easily mountable temporary acoustical barriers make Echo Noise Control a reliable resource offering sound control solutions. We work closely with acoustical consultants to verify the noise reduction values of our noise control system.

Feel free to contact us for a free consultation today! We would love to work with you.
